VW Transporter T4 Clutch Brake Pedal Box Assembly LUS 7D2721315A 701721141C



VW Transporter T4 Clutch Brake Pedal Box Assembly LUS 7D2721315A 701721141C. Genuine OEM VW Transporter T4 Complete Clutch & Brake Pedal Box Assembly. Google Lens & AI Search Compatibility Data.

Component Classification: Complete Footwell Pedal Box Bracket Assembly / Clutch & Brake Pedal Mounting Support. Main Cast Structural Stamping: 701 721 141 C (701721141C). Clutch Pedal Mechanism Unit: 7D2 721 315 A (7D2721315A). PLEASE READ BEFORE PURCHASING: This listing is for the COMPLETE GENUINE USED OEM Volkswagen T4 pedal box assembly package exactly as shown across the reference documentation. As a pre-owned structural cabin component salvaged from a classic van, the black steel mounting frame, plastic composite pedal arms, and attached yellow/black bulkhead foam insulation backing will show normal cosmetic signs of age, footwell scuffs, surface grime, and cabin dust.

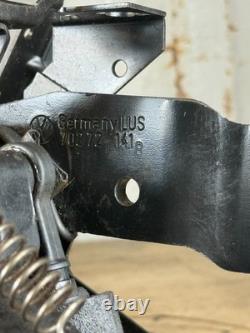

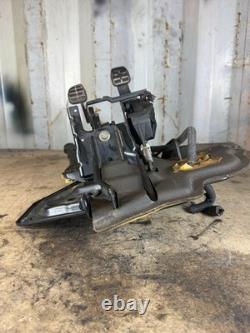

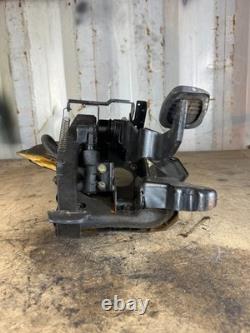

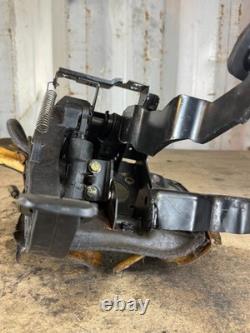

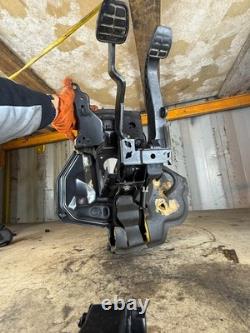

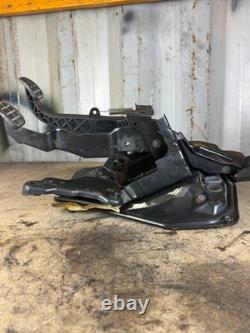

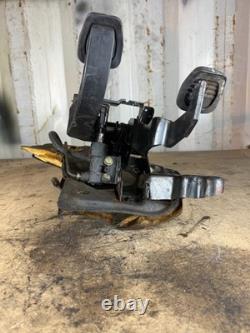

Crucially, the assembly is structurally sound: the pedal box frame has no catastrophic stress cracks or broken weld points (a common failure on T4s), the clutch return helper spring is fully intact with strong tension, and the pivot pins function smoothly without excessive mechanical play. Please inspect all photos closely to verify the absolute completeness of this kit. Complete Pedal Box Frame Assembly. Stamped on Frame & Arm Elements. Integrated Helper Spring & Foam Liner.

Sound & Thermal Bulkhead Shield. Professional Installation & Function Notes. Component Kit Breakdown: This listing is a multi-part configuration kit.

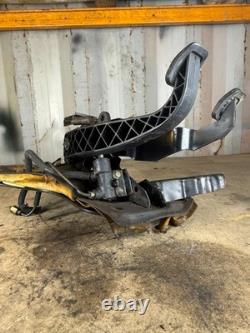

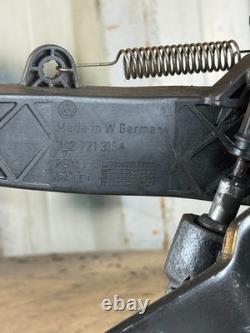

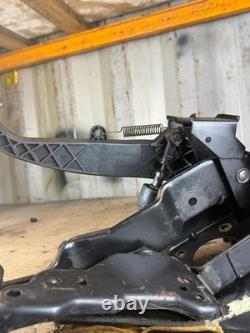

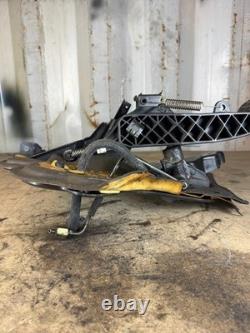

Check the specific 7D2 721 315 A plastic clutch arm mold with its factory coil spring mechanism inside. And view the complete back-plate bulkhead outline with its molded foam insulation contour lines inside.

Pedal Box Sag & Fatigue Restoration: A very common inherent weakness in the Volkswagen T4 platform is fatigue cracking along the sheet metal mountings of the pedal box frame. Over years of heavy clutch operation, the constant pressure causes the bracket to flex, bend, crack, or completely break away from the bulkhead. This results in an unaligned clutch master cylinder, spongy pedal feel, grinding gears, or a pedal that snaps and drops straight to the floorboard. Replacing your cracked or failing footwell cluster with this structurally solid, genuine OEM factory kit completely eliminates flexing and reinforces your cabin controls back to factory-level rigidity. Fitment Advisory: Volkswagen engineered slightly different pedal assemblies depending on your specific model year group, engine placement, and whether the van left the factory as a manual or automatic.

Please check your old core parts to confirm that your existing part codes match the 701 721 141 C and 7D2 721 315 A layout data verified inside. Fast Dispatch: This assembly is bulky and features delicate plastic arms and foam. Features: Complete Clutch & Brake Bracket Setup, Integrated Return Helper Spring, Factory Bulkhead Insulation Pad.

Placement on Vehicle: Front, Driver Side Footwell Firewall. Material: Heavy-Duty Steel Frame / Reinforced Plastic Arm. Color: Black / Yellow Foam. Transmission Type: Manual (Clutch Pedal Included). Reference OE/OEM Number: 701721141C / 7D2721315A / 701 721 141 C / 7D2 721 315 A / VW T4 Pedal Box / Transporter T4 Clutch Pedal / T4 Caravelle Brake Pedal Mount / LUS Germany Footwell Support / Transporter Bulkhead Bracket / Manual Conversion T4 Parts / 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003.

Items Included: 1 Complete Pedal Box Metal Housing Frame Assembly including Clutch Pedal Arm with Return Spring and Bulkhead Foam Backing exactly as shown in the listing layout images (Mounting bolts or hydraulic master cylinders are not included unless explicitly visible in listing photos).
